Code: LPJG48851AFNL
Futura stockists of LINK-PP LPJG48851AFNL, Base-T RJ45 Connector. Complete range of Electronic Connectors & Adapters available online & in-store.
Price on Application
LINK-PP LPJG48851AFNL | Base-T RJ45 Connectors
Magnetic Jacks/Ethernet Connectors | Electronic Connectors & Adapters
Description:

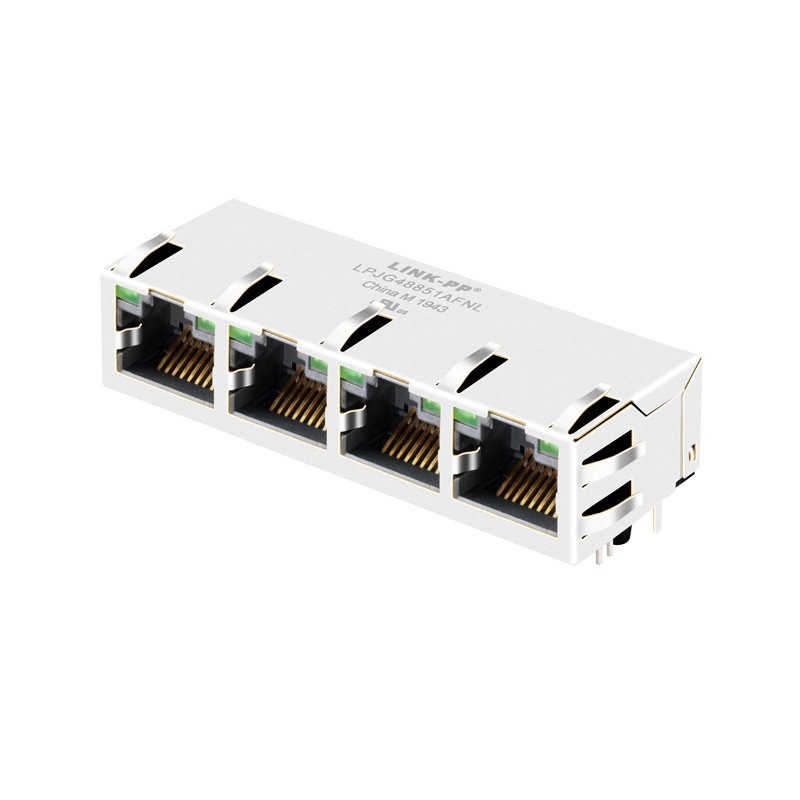

Pulse JG0-0025NL Compatible LINK-PP LPJG48851AFNL 10/100/1000 Base-T Ethernet Jack RJ45 for DVD and Webcams (1x4 Port, Tab Up, Green/Green LED)
The LPJG48851AFNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards. It can be used to support application, such as Hard Disk Players, Internet Of things Gateways, DVD and Webcams.
- LINK-PP Part Number: LPJG48851AFNL
- Pulse Part Number: JG0-0025NL
- Part Status: Active
- Connector Type: Jack
- Number of Positions/Contacts: 10p8c (RJ45, Ethernet)
- Application-Lan: Ethernet(NoN PoE)
- Number of Ports: 1x4 Port
- Speed: 10/100/1000 Base-T
- Latch: Up
- Cores per Port: 8
- Orientation: 90° Angle (Right)
- PCB Mount Angle: SIDE ENTRY
- Shield EMI Tabs: With
- LED Option: Green/Green Led
- PCB: FR4
- PCB Retaining Post: T POST
- Package Height (Inches/mm): 0.531/13.50
- Package Length (Inches/mm): 1.00/25.40
- Package Width (Inches/mm): 2.331/59.20
- Temperature: 0℃ TO 70℃
- Bst Circuit: Yes
- AutomDX: YES
- Diodes: No
- Contact Mating Area Plating: GOLD 6u"/15u"/30u"
- Turns Ratio RX/TX: 1CT:1CT
- Configuration RX/TX: T,C
