Code: 40202005
Futura Electronics stockists of Mete Enerji 40202005, Thermoplastic enclosure. Complete range of Enclosures & Accessories available online & in-store.
Price on Application
Mete Enerji 40202005 | Thermoplastic enclosure

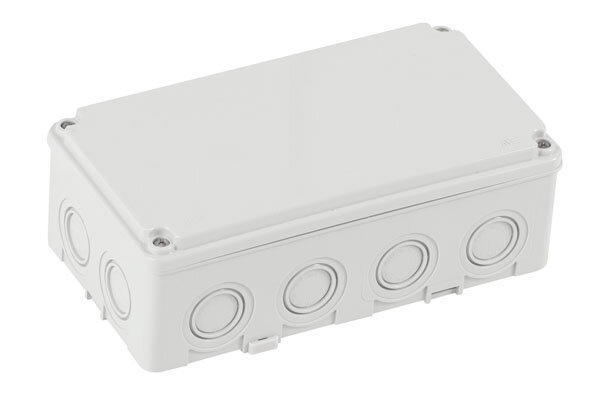

Thermoplastic enclosure 110x210x70
Product Description:
- Thermoplastic Enclosure: 110x210x70mm IP67 IK06
- Product Code: 40202005
- METEBOX – Thermoplastic Enclosure – External Dimensions: 117x217x75,5mm
Cover Fastening Type: Screw, Colour: Grey RAL 7035,
Working Temperature: -25°C~+60°C,
Raw Material: ABS
Technical Information:
- Product Name: Thermoplastic Enclosure
- External Width (mm): 117
- External Length (mm): 217
- External Depth (mm): 75,5
- Internal Width (mm): 110
- Internal Length (mm): 210
- Internal Depth (mm): 70
- Drill hole distance vertical (mm): 170
- Drill hole distance horizontal (mm): 70
- Features: Standard Cover
- Cover Fastening Type: Screw
Technical Characteristics:
- IP: IP67
- Shock Proof: IK06
- Sealing: PU
- Glow Wire: 650°C
- Cable Entry No.: 12
- Cable Entry Size: PG 16-21
- Included Accessories: 1xPG16 + 1xPG21 Soft Cable Gland
Material Properties:
- Colour: Grey RAL 7035
- Min-Max Working Temperature: ABS
- Body Material: ABS
- Cover Material: Grey - RAL 7044
Certification:
- Standard: TSE
For further information regarding Enclosures and accessories, please send us an email at sales@futura.ie.
